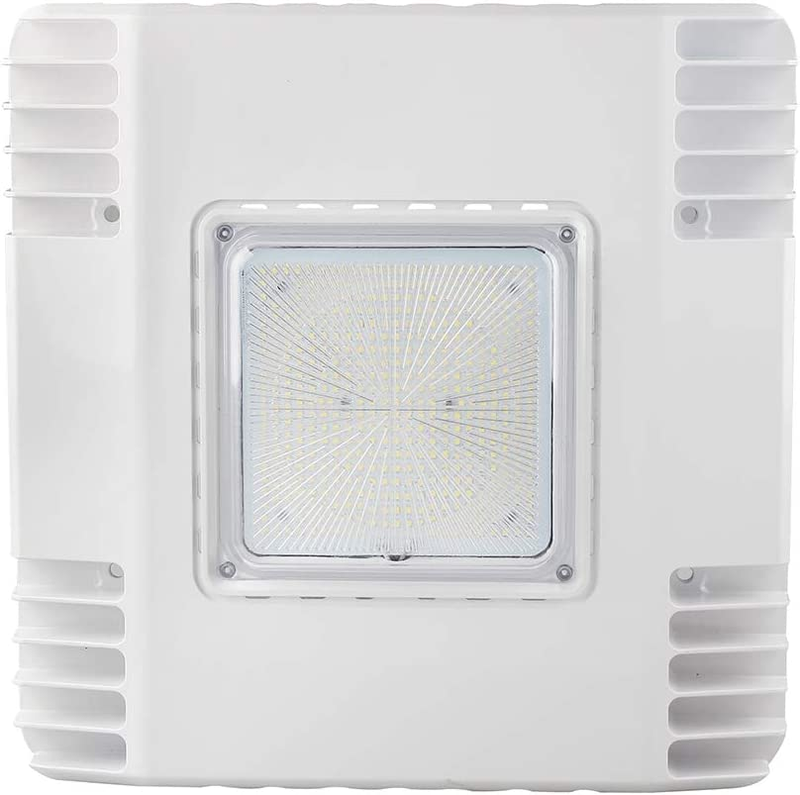

Led Surface Mount Canopy Light - Direct Mount Parking Garage Gas Station

💡[Energy Saving] - 150W LED Canopy(500W MH/HPS/HID equivalent) Energy Savings up to 80%, Long lifespan. Rated over 70,000 hours of use, that's about 24 years @ 8 hours/ day

🌞 [Super Bright] - Our LED Canopy Lighting Fixture provides 21000 Lumens at 5700K Cool White. No blue light, and 3% brighter than 5000K. That is a staggering LED Efficiency of 140lm/w

💛 [IP65 Waterproof ] - Perfect for any damp or wet Locations. Resists Rust, Corrosion, Cracking and any electrical shocks or fires due to moisture. Ideal for outdoor applications such as gas stations, parking garages, underpasses, loading docks, warehouses, entryways,service station, etc.

🌞 [APPLICATION] - Ideal for warehouse, garage, gas station, and other commercial lighting applications, Support ceiling mount or conduit pipe Mount or bracket mount

👍[CERTIFICATED] - This one LED canopy lights get UL and DLC approved, UL provide security quality, DLC approval good for project rebate. 5 years warranty, any question please contact with us freely

Product Description
LED Flying Direct is a USA owned and operated commercial and industrial lighting manufacturer, focusing on giving customers excellent products.
Canopy lights are luminaries that are installed under a canopy, such as a gas station lights or retail area with a covered space. The lights hang from or are attached to this canopy and overlook the area that they are placed in, placed at an angle that provides maximum illumination to the desired place.
LED Flying Direct's 150W LED Canopy Light series is ideal for industrial and commercial lighting, like Gas Stations, Parking Garage, Canopies and more. Built to be high efficiency and versatile with direct or recessed mount. Also support conduit pipe mount.
Easily replace your large light fixtures with our LED Ceiling lights. Sometime called gas station lights or canopy lights, these are highly versatile fixtures that look good while saving you money. Unit is built to last and rated IP65 for Waterproof which is indoor and outdoor rated. Features of LED Canopy Lights Housing: Powder Coated Cast Aluminum - White Heat and Impact Resistant Ambient Temp: -20°C - 40°C (-4°F - 104°F) LED Brand: SMD 3030 Silicone Gasket prevents leakage from the outside IP65: Suitable for wet locations
High Performance Canopy Light
Our LED canopy lights use durable materials to ensure high quality. IP65 waterproof and Explosion-proof for all conditions. The surface of the die-cast aluminum alloy shell is covered with a protective powder coating to prevent from fading, corrosion-resistant, and resistant to high and low temperatures.
Super Bright Canopy Light
This 150W led canopy light has over 21,000 Lumens and can replace a 400 - 600watt MH and HPS, 300W incandescent or 120W CFL. 5700K light color ensures a bright clear light. This LED Canopy LED Light is the ideal way to go LED and save money!
Better Heat Dissipation
Die-cast aluminum housing with silicone sealing ring to prevent moisture and work for a long lifespan; Aluminum housing with high tech Heat Sink protects the LED Driver. Better Heat dissipation ensures longer LED life and safety.
Specifications of LED Canopy / Gas Station Lights Wattage 150W Replacement Wattage 400 - 600 watt Metal Halide or High Pressure Sodium Input Voltage 100-277V AC Color temperature 5700K daylight Efficiency 140LM/W Lumen 21,000LM Mounting Types Direct surface or recessed mount, Bracket Mount and Conduit Pipe Mount Color Rendering Index (CRI) 80+ Working temperature -13°F-104 °F Dimmable Not Dimmable Waterproof Grade IP65 Dimension 14.96X14.96X2.83 inch
Installation of LED Canopy Ceiling Lights
1. Surface Mount - Default Installation
2. Conduit Pipe Mount - Customers supply the conduit pipe when install.
3. Bracket Mount - This bracket is not included in the package, please advise if you need it
Installation Method 1 (Surface Mount)
1. Fix one side of the accessory safety rope on the back of the fixture (Figure 1 ).
2. Use electric drill to set fixed holes through the ceiling (Figure 2).
3. Fix the other side of the safety rope to the ceiling, connect the cable, Black-L, White-N, Green-Ground, make sure to protect the wire joints, and finally fix the fixture on the ceiling with screws.
Installation Method 2 (Conduit Pipe Mount)
1. Connect the wring to the local power supply in the 3/4”conduit pipe (Figure 4).
2. Screw the fixture to the 3/4”conduit pipe (Figure 5).
Installation Method 3 (Bracket Mount)
1. Drill the alignment holes on the top ceiling, make them match to the holes on the mounting bracket.
2. lnsert the supplied rubbers into the alignment holes, then fix the mounting plate. Then fix the mounting plate on the ceiling by supplied screws. (Figure 9)
3. Mount the fixture on the mounting plate by supplied screws. (Figure 10)
4. Make wiring connections and make sure good wire protection. Surface Mount Mounting Brackets Conduit Pipe Mount
Application of LED Canopy Lights (Gas Station Lights)
Canopy lights are ceiling mounted lights that are designed to hang tough against weather and unauthorized tampering. This makes canopy lighting ideal for indoor and outdoor use. The main difference between LED canopy lights and other surface mounted lights like down lighting and ceiling lighting is that LED canopy lights are suitable for wet locations. Pack 1-Pack 2-Pack
